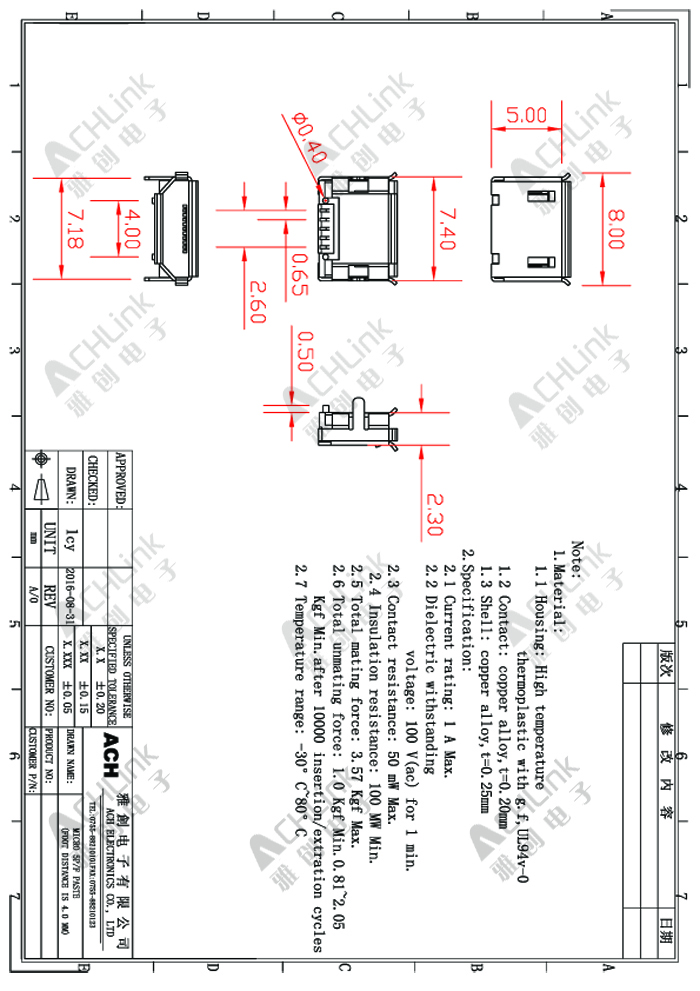

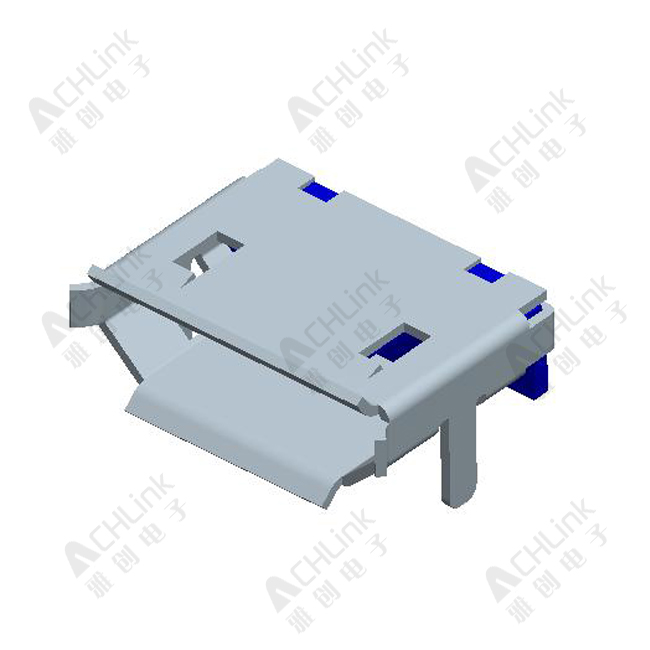

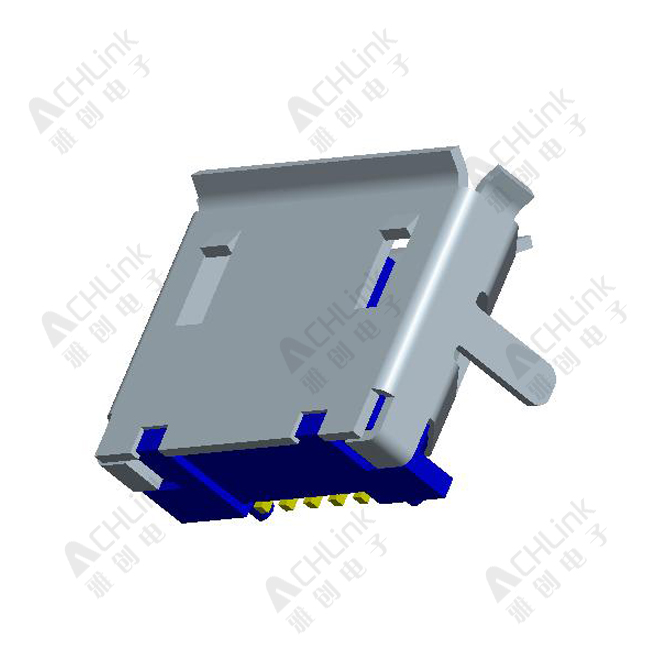

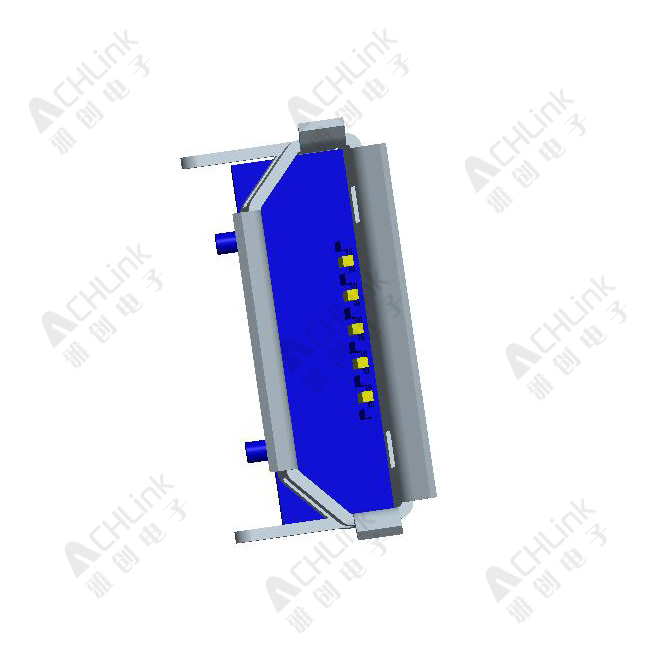

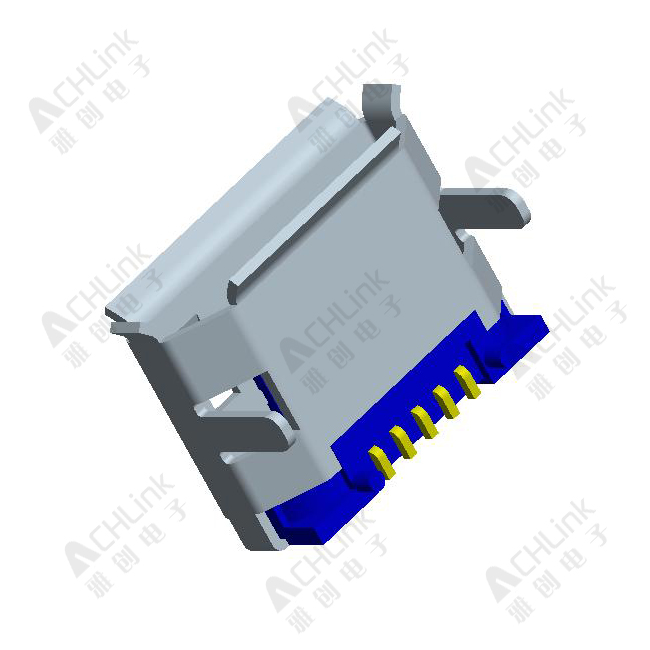

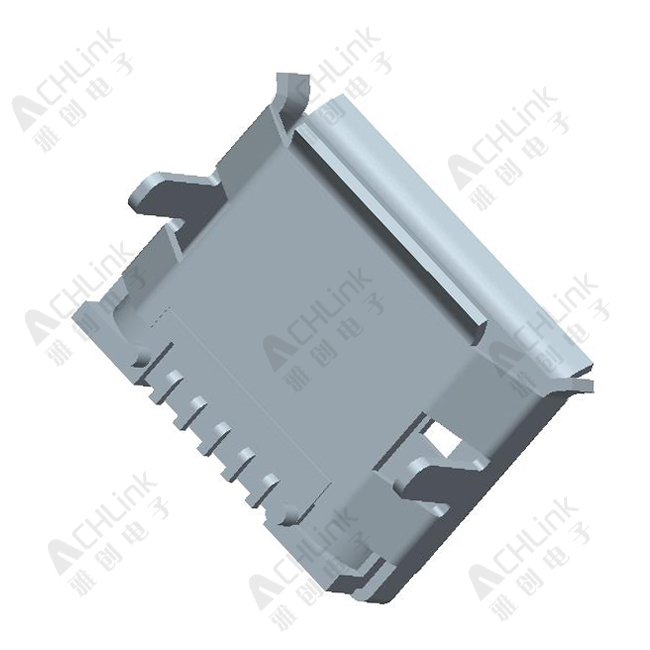

- MICRO 5P/F PASTE FOOT DISTANCE IS 4.0 MM
PRODUCT MODEL:1090-405-0001
CURRENT RATING: 1 A MAX.
DIELECTRIC WITHSTANDING
VOLTAGE: 100 V(AC) FOR 1 MIN.
CONTACT RESISTANCE: 50 MW MAX.
INSULATION RESISTANCE: 100 MW MIN.
TOTAL MATING FORCE: 3.57 KGF MAX.
TOTAL UNMATING FORCE: 1.0 KGF MIN.0.81~2.05
KGF MIN.AFTER 10000 INSERTION/EXTRATION CYCLES
TEMPERATURE RANGE: -30°C~80°C
CURRENT RATING: 1 A MAX.
DIELECTRIC WITHSTANDING
VOLTAGE: 100 V(AC) FOR 1 MIN.
CONTACT RESISTANCE: 50 MW MAX.
INSULATION RESISTANCE: 100 MW MIN.
TOTAL MATING FORCE: 3.57 KGF MAX.
TOTAL UNMATING FORCE: 1.0 KGF MIN.0.81~2.05
KGF MIN.AFTER 10000 INSERTION/EXTRATION CYCLES
TEMPERATURE RANGE: -30°C~80°C
