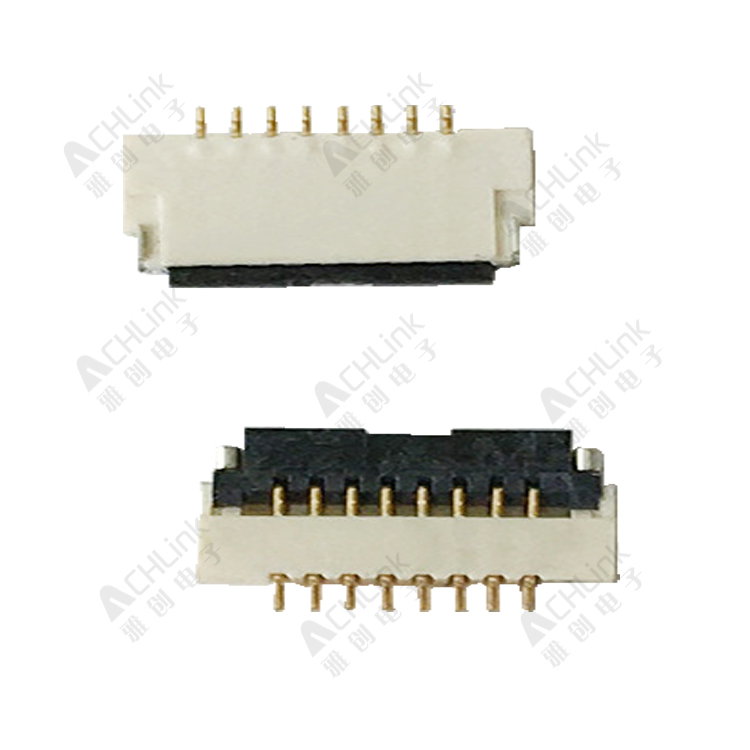

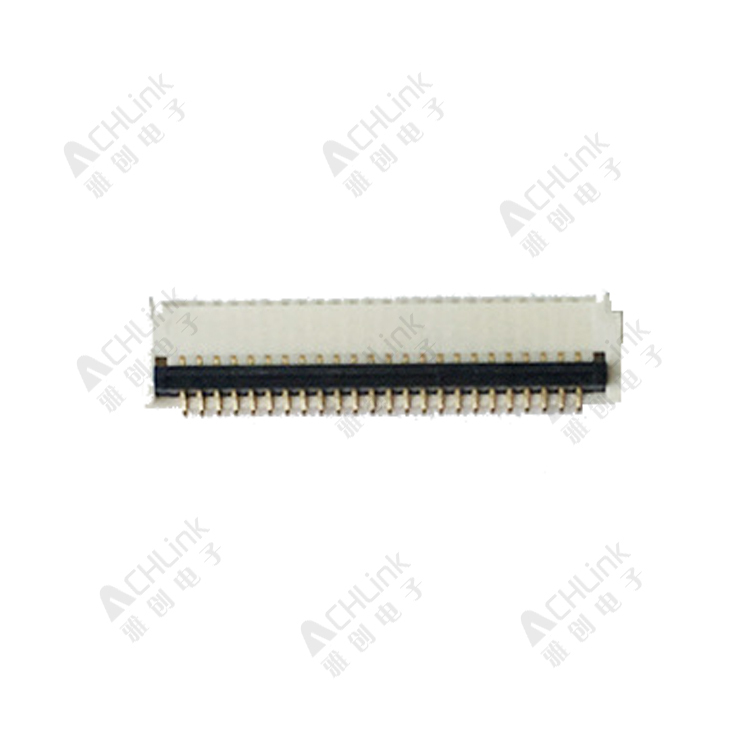

FPC0.3MM front lift rear pressure SMT H=1.0MM
左滚动
  • FPC0.3MM front lift rear pressure SMT H=1.0MM
  • FPC0.3MM front lift rear pressure SMT H=1.0MM
右滚动
  • FPC0.3MM front lift rear pressure SMT H=1.0MM
PRODUCT MODEL:6010-XXX-0001
1. Material:
A.Housing: LCP Nature Color( UL 94V-0)
B.Cover: LCP Black( UL 94V-0)
C.Terminal: Phosphor Bronze
D.Stator: Brass
2 Parameter:
1)Standard conditions:
A Operation Temperature: -40 ~ +85℃
Without ice or dew
B Operation Humidity: 20-85%RH
C Storage Temperature:-10~+50℃ Without ice or dew
D Storage Humidity: 20~85%RH
2)Rating Voltage:20℃ 50V (AC/DC)
ambient temperature 20℃ 50V (AC/DC)
3)Rating Current :20℃ 0.5A / PIN
ambient temperature 20℃ 0.5A / PIN
PDF:
